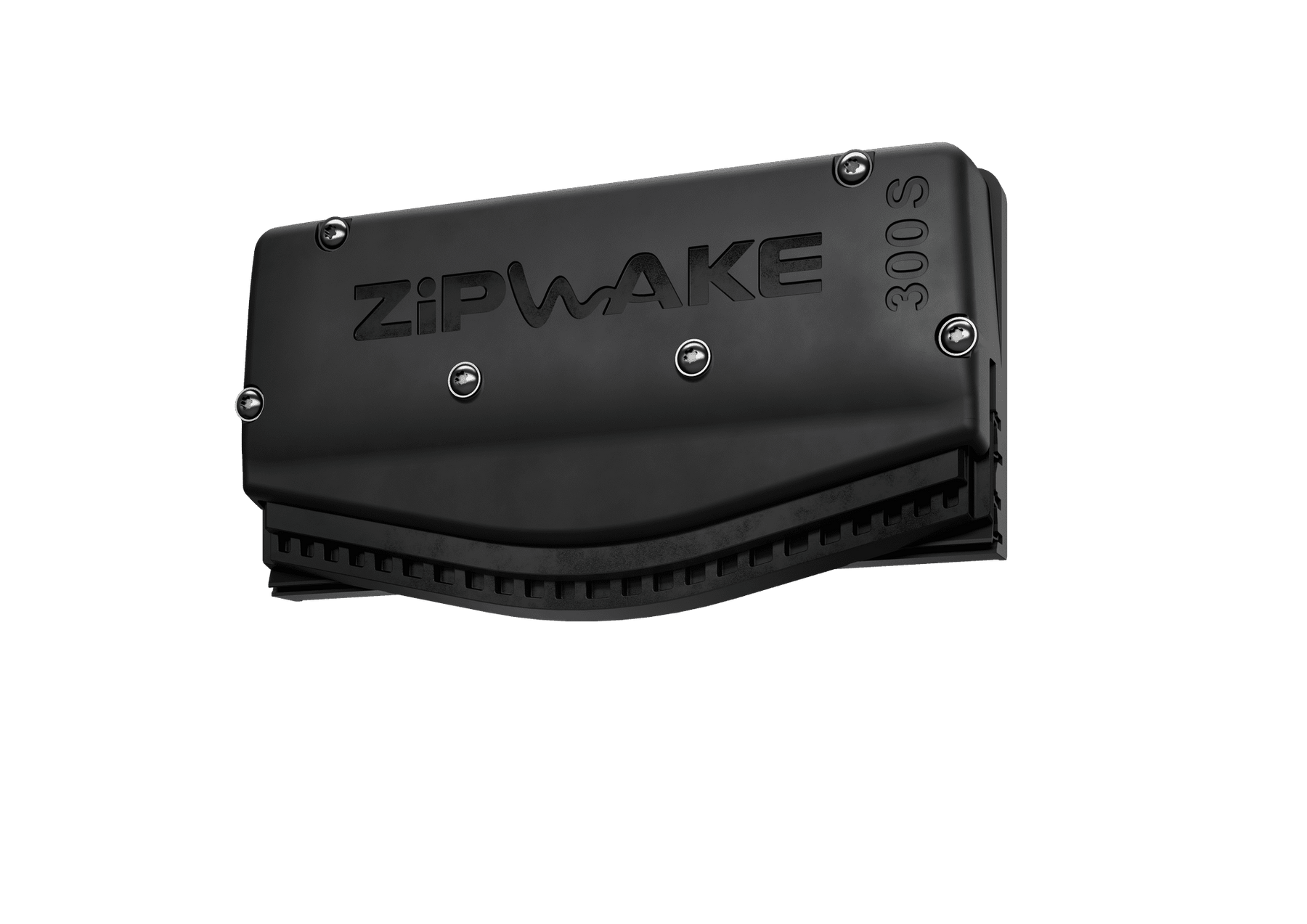

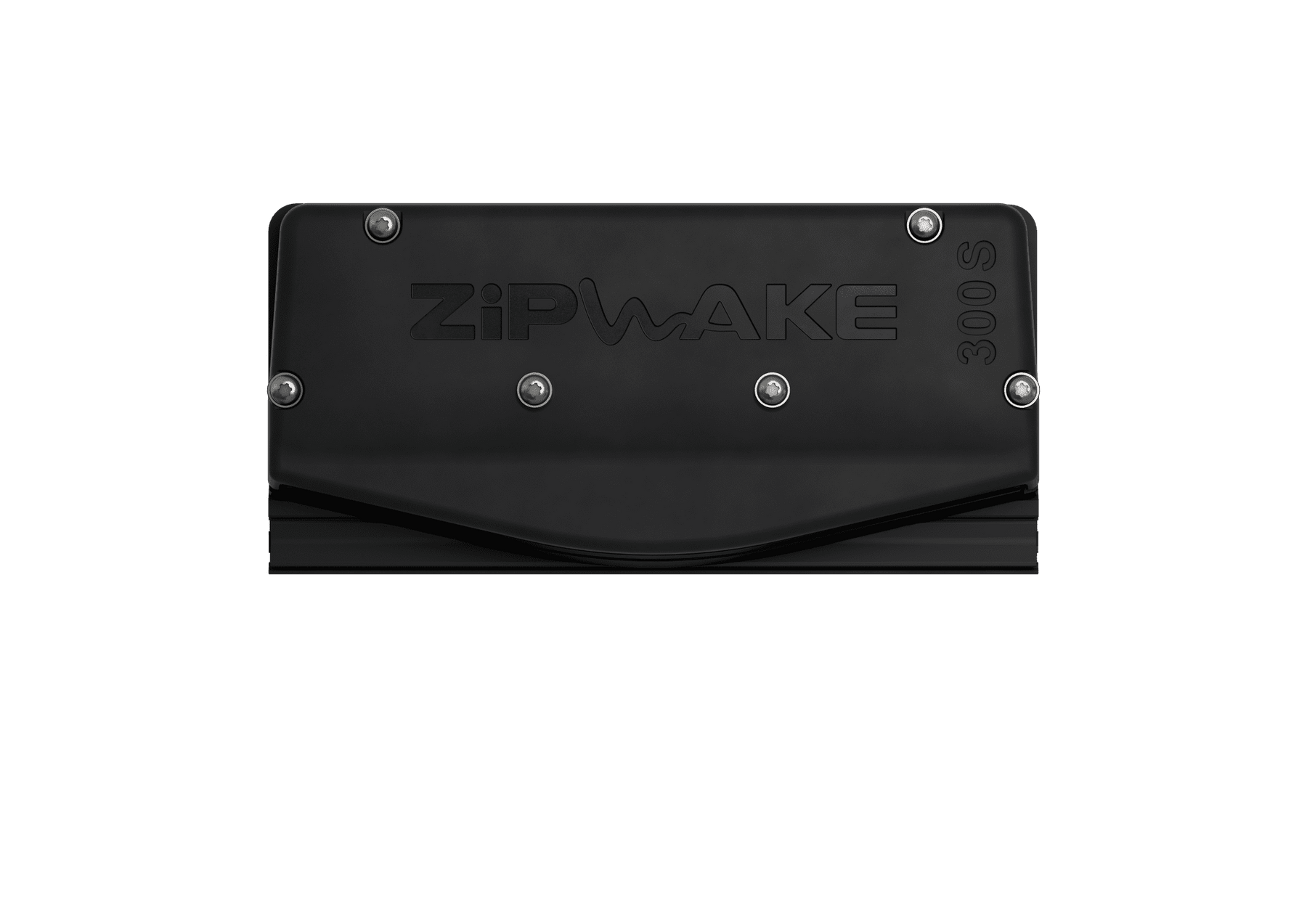

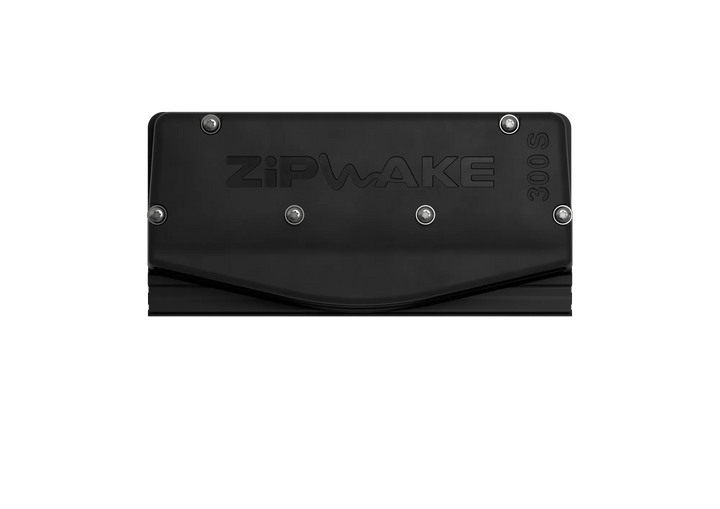

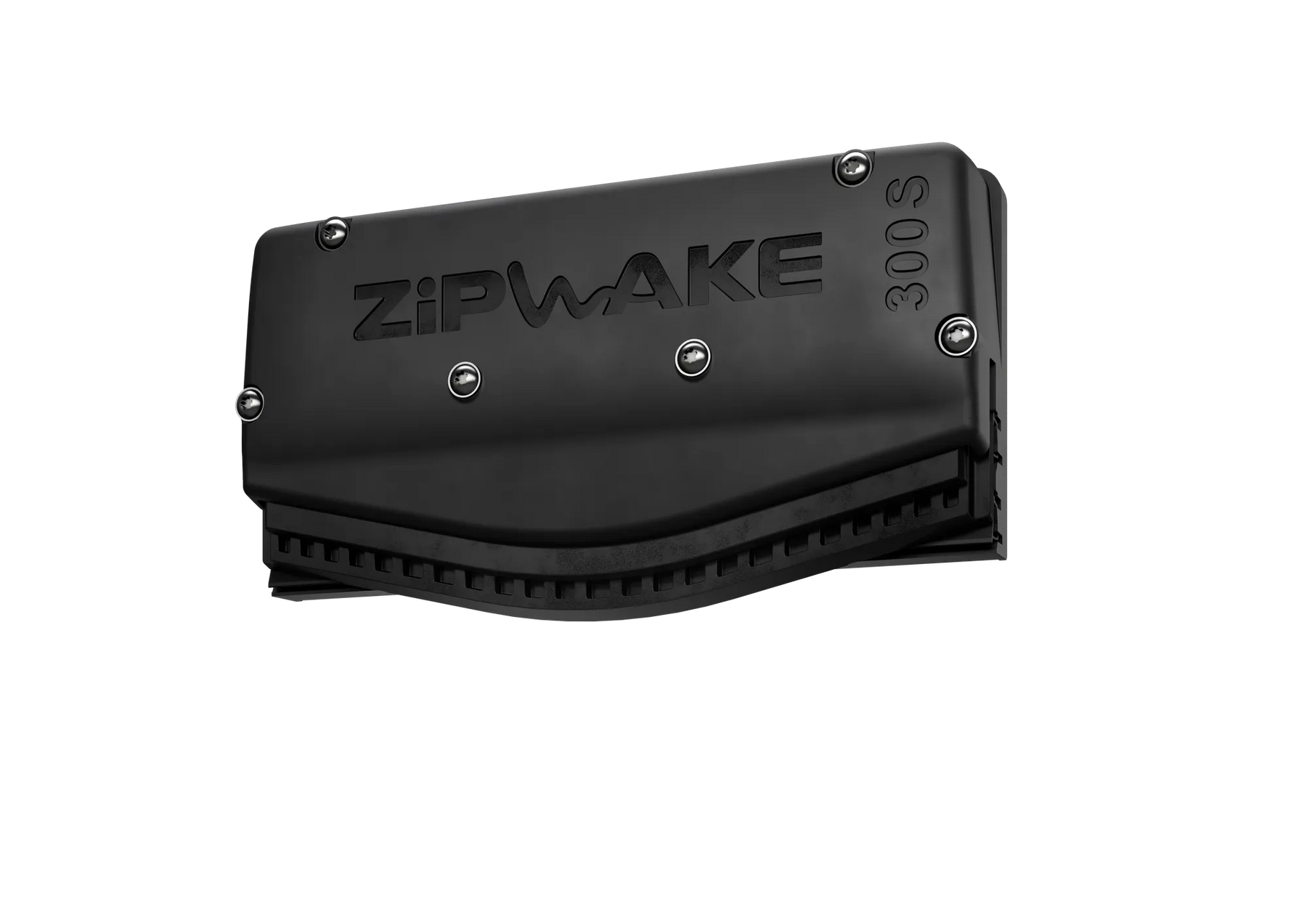

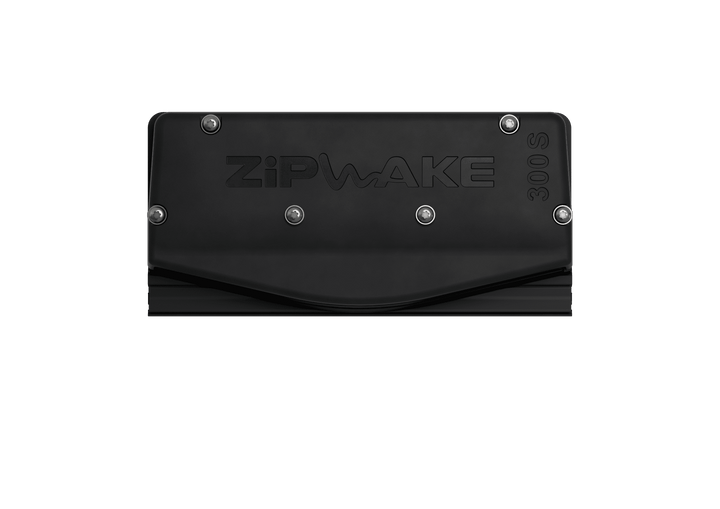

Zipwake Interceptor Intermediate from the Series S is a smart choice when you need a smooth transition between different interceptor shapes, for example where a flat surface meets an angled chine. Series S interceptors are designed for planing or semi-planing boats between 6 and 15 meters. This model is specifically shaped to connect sections where the transom is not completely even, helping to provide more consistent lift and improved stability both laterally and longitudinally. It is ideal when you want the system to perform as efficiently as possible, even on more complex hull designs.
What is an interceptor?
An interceptor works as a modern alternative to traditional trim tabs. Instead of a large plate that folds down into the water, an interceptor uses a narrow blade that quickly extends just a few millimeters. This small movement creates immediate lift at the stern, allowing the boat to respond much faster compared to conventional trim tabs. The result is improved stability, faster trim adjustments, and reduced water resistance.
The interceptor features an integrated electric servo motor (SU-S) that precisely controls the interceptor blade. It requires no calibration and is easy to replace if necessary. The motor provides a 30 mm stroke length, a speed of 20 mm/s, and full trim adjustment in just 1.5 seconds. It delivers sufficient power to operate the blades at speeds of up to 60 knots. The brushless servo motor supports 12–32 V DC.
The interceptor comes with a three-meter cable and a self-sealing through-hull fitting, extendable up to six meters. It can be installed discreetly behind the interceptor or above the waterline, depending on installation preference. A protective cable cover is also included to ensure a clean and secure installation.
Like the other interceptors in the Series S, the Intermediate model operates with high precision and contributes to more even force distribution across the stern. While the Straight models are suited for flat surfaces and the angled or V-shaped versions are used for specific hull geometries, the Intermediate acts as the link between them. It is an essential component in systems where the stern changes shape and maximum stability and performance are required.
What is an interceptor?
An interceptor works as a modern alternative to traditional trim tabs. Instead of a large plate that folds down into the water, an interceptor uses a narrow blade that quickly extends just a few millimeters. This small movement creates immediate lift at the stern, allowing the boat to respond much faster compared to conventional trim tabs. The result is improved stability, faster trim adjustments, and reduced water resistance.
The interceptor features an integrated electric servo motor (SU-S) that precisely controls the interceptor blade. It requires no calibration and is easy to replace if necessary. The motor provides a 30 mm stroke length, a speed of 20 mm/s, and full trim adjustment in just 1.5 seconds. It delivers sufficient power to operate the blades at speeds of up to 60 knots. The brushless servo motor supports 12–32 V DC.
The interceptor comes with a three-meter cable and a self-sealing through-hull fitting, extendable up to six meters. It can be installed discreetly behind the interceptor or above the waterline, depending on installation preference. A protective cable cover is also included to ensure a clean and secure installation.
Like the other interceptors in the Series S, the Intermediate model operates with high precision and contributes to more even force distribution across the stern. While the Straight models are suited for flat surfaces and the angled or V-shaped versions are used for specific hull geometries, the Intermediate acts as the link between them. It is an essential component in systems where the stern changes shape and maximum stability and performance are required.
| Varumärke | Zipwake |
| Modell i PIM | 1587 - Serie S |
| Modell | Serie S |
| Bruttovikt (kg) | 0 |
| GTIN | 7331284011813 |
