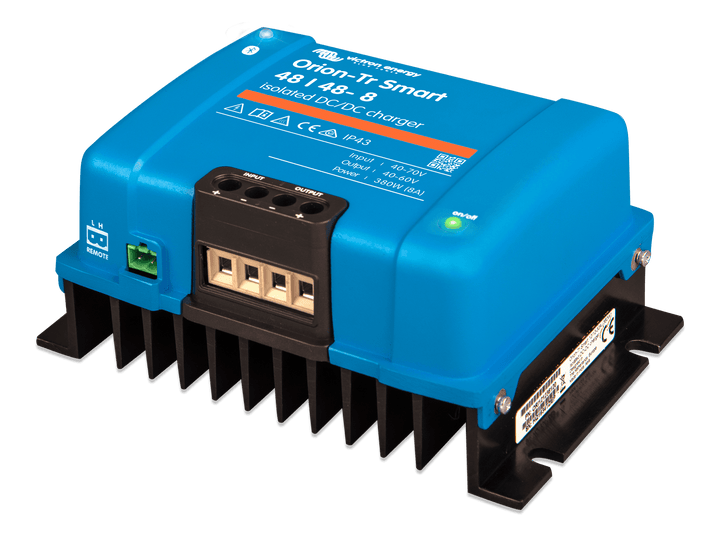

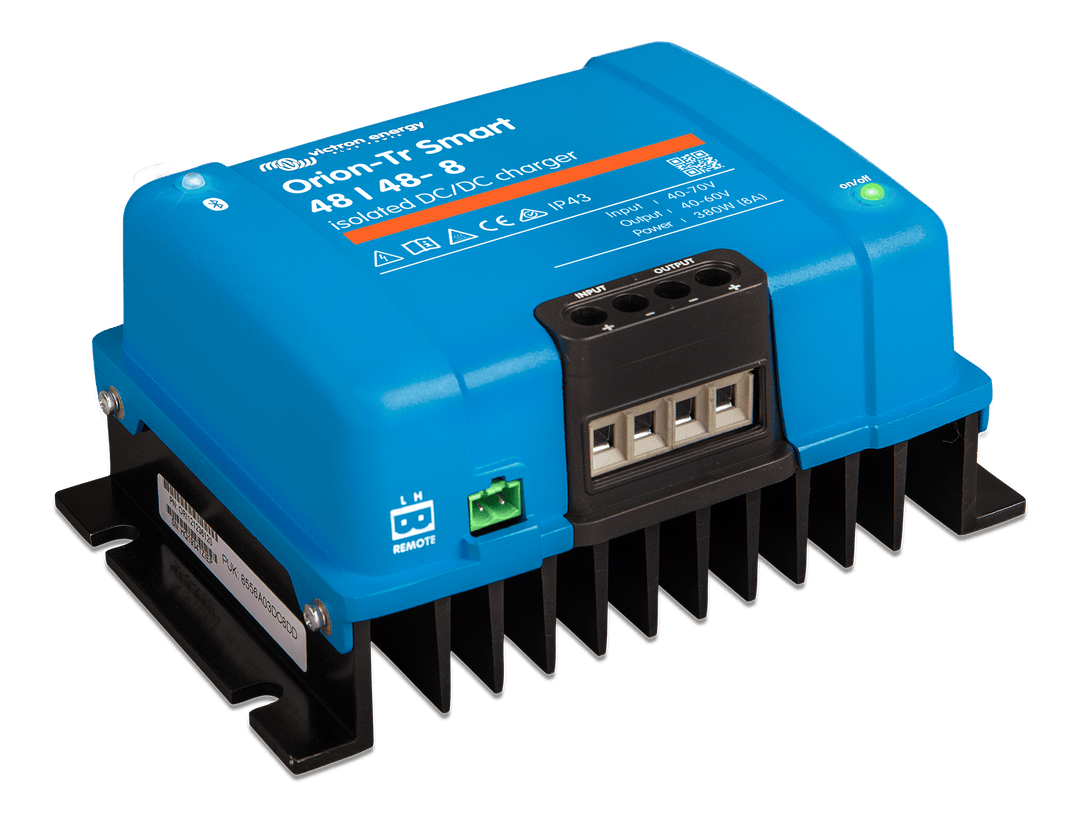

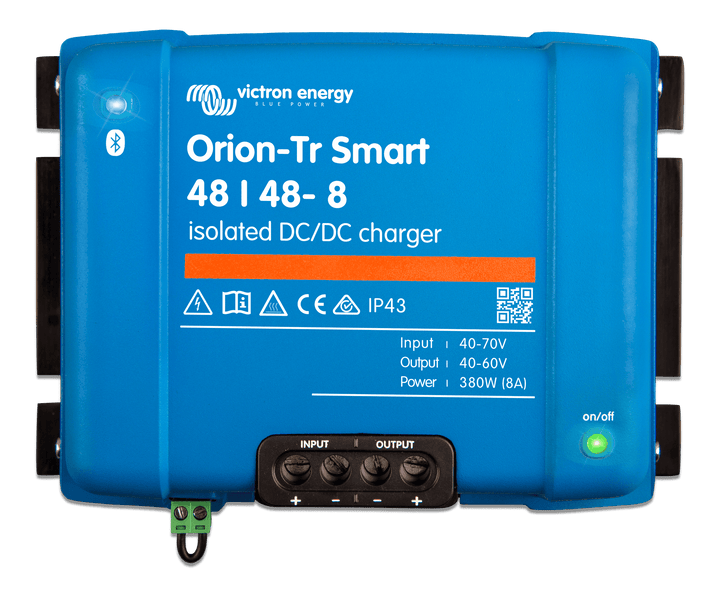

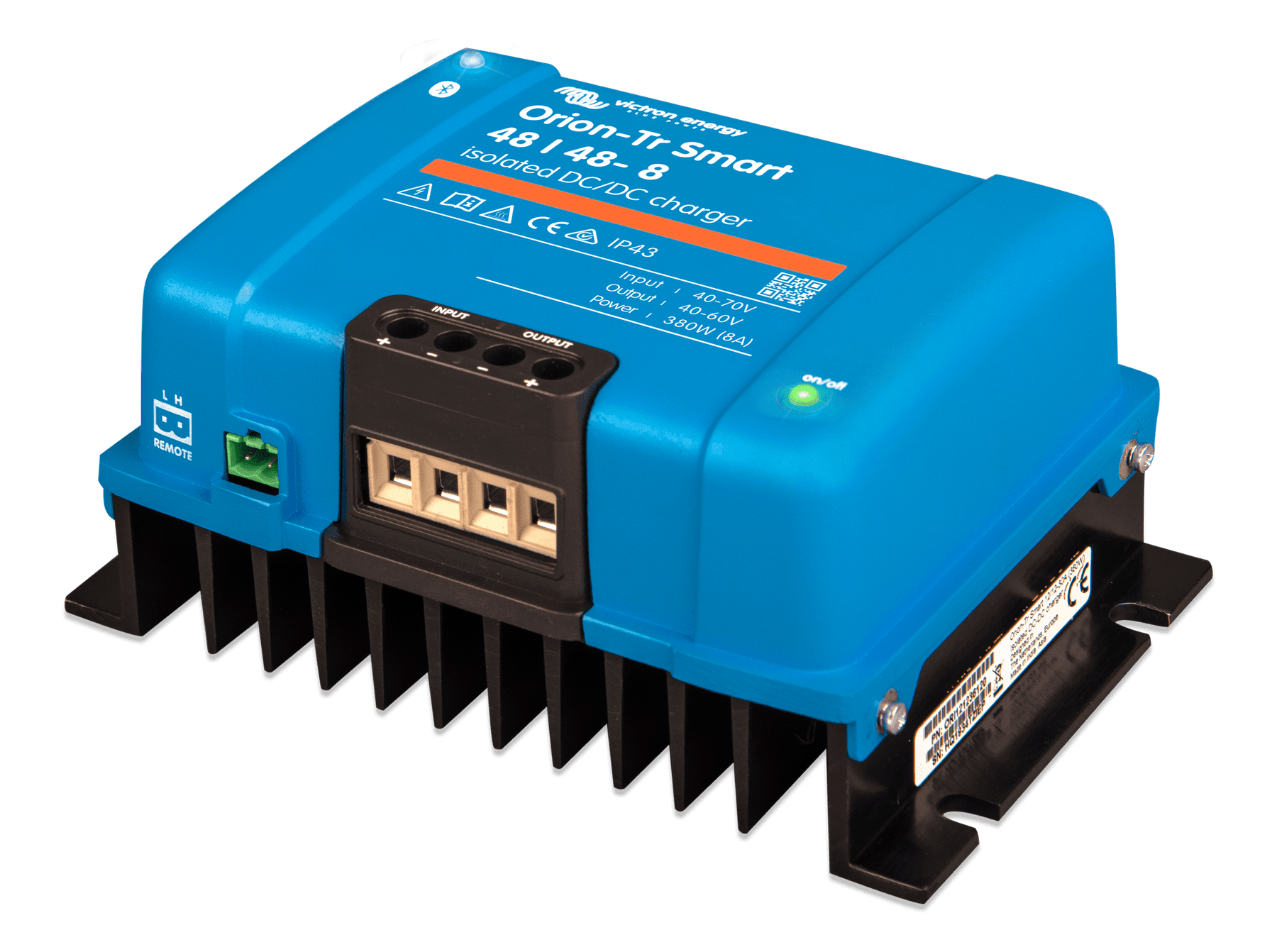

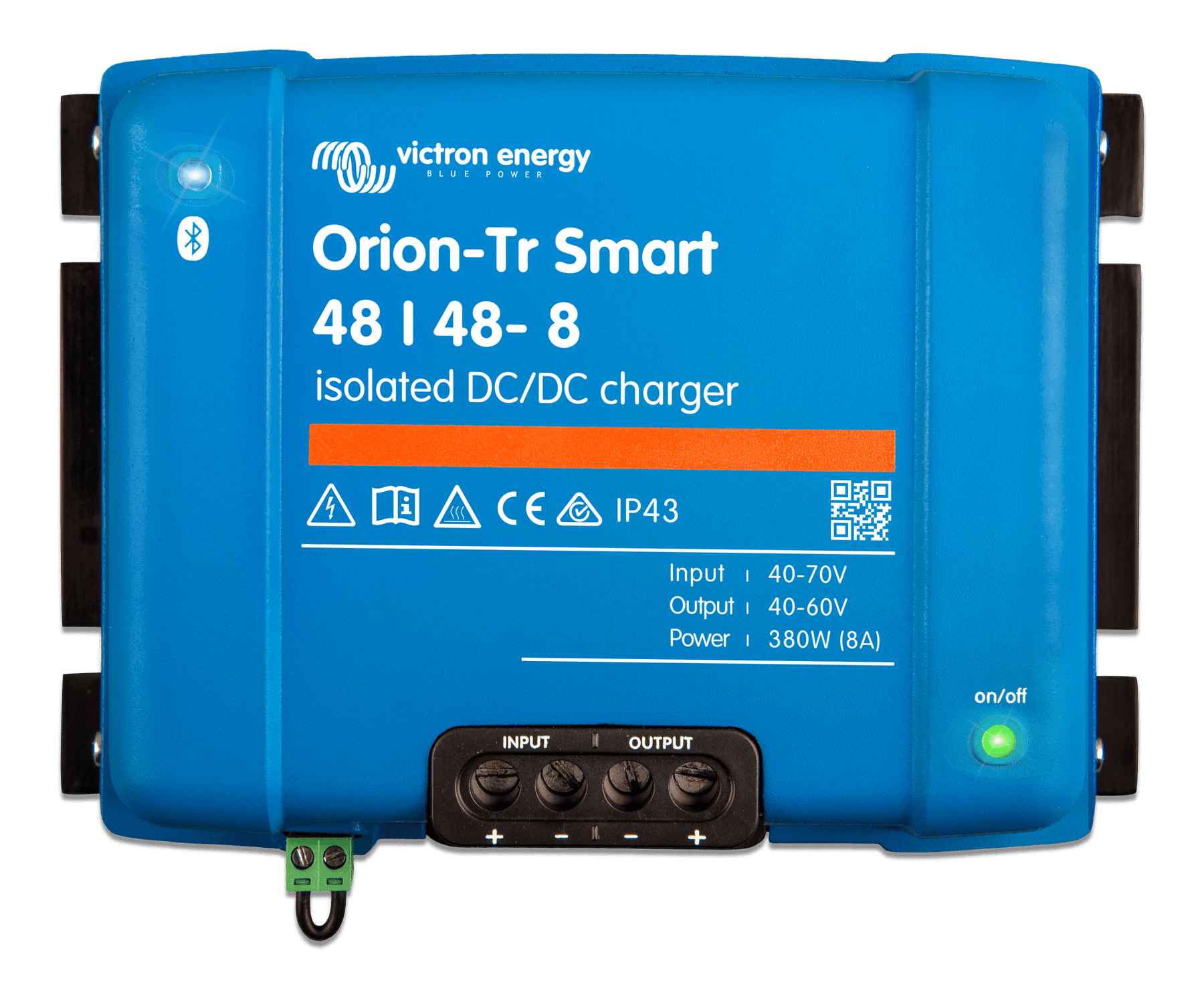

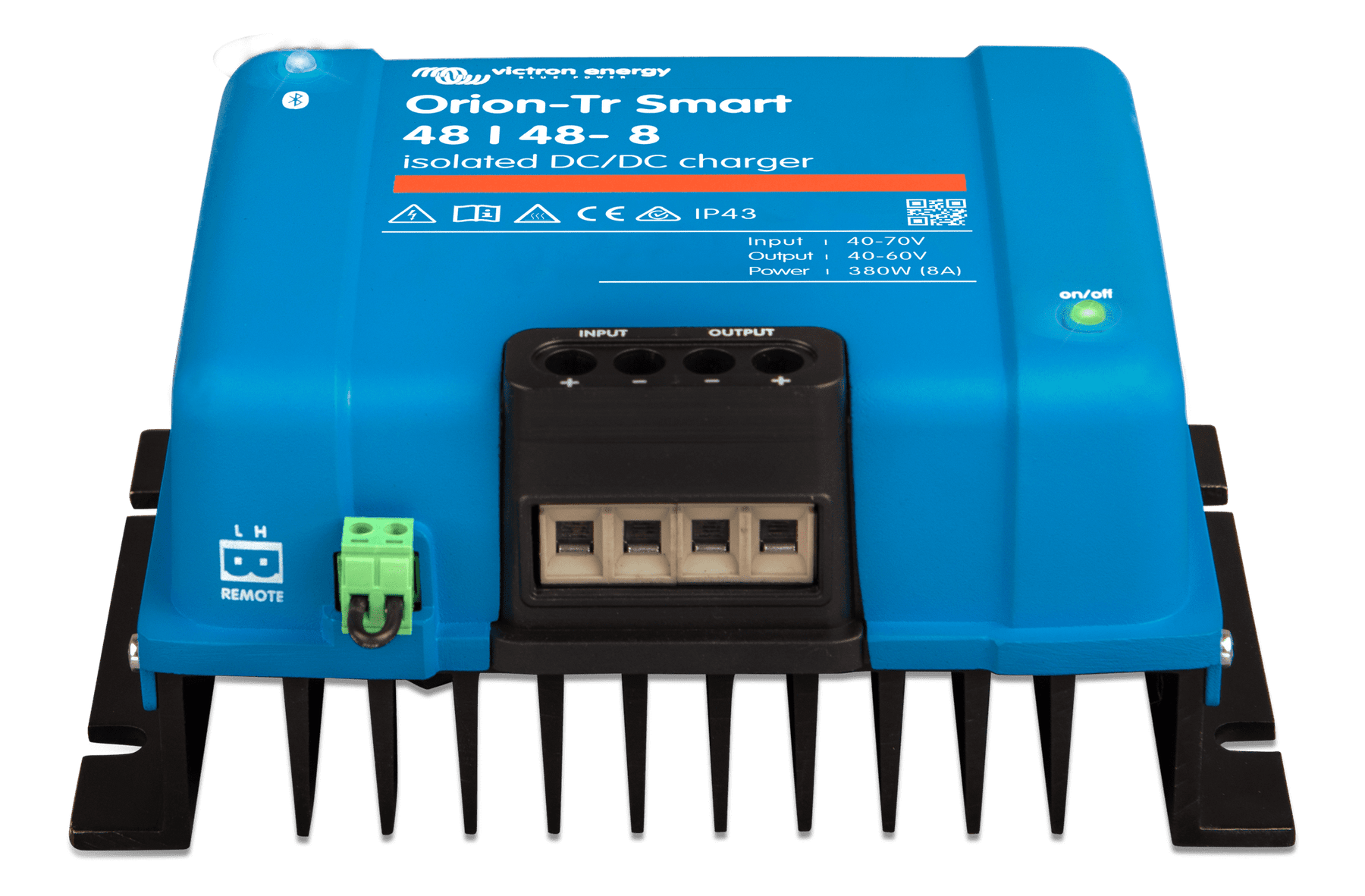

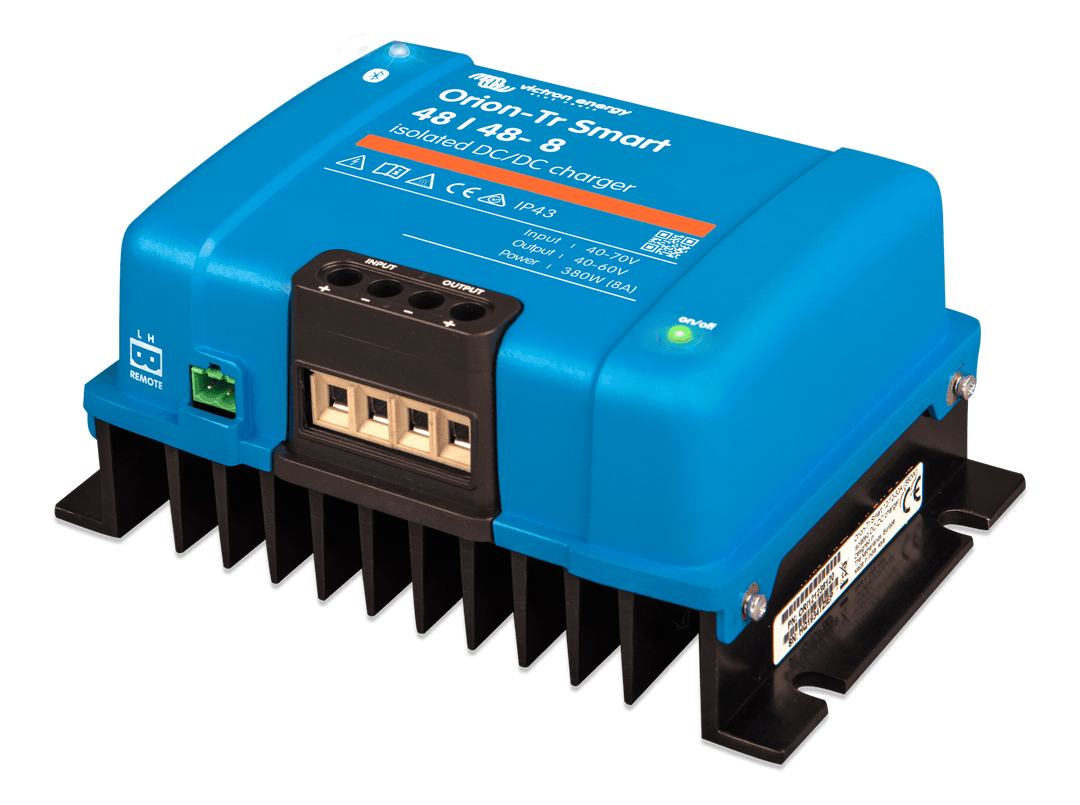

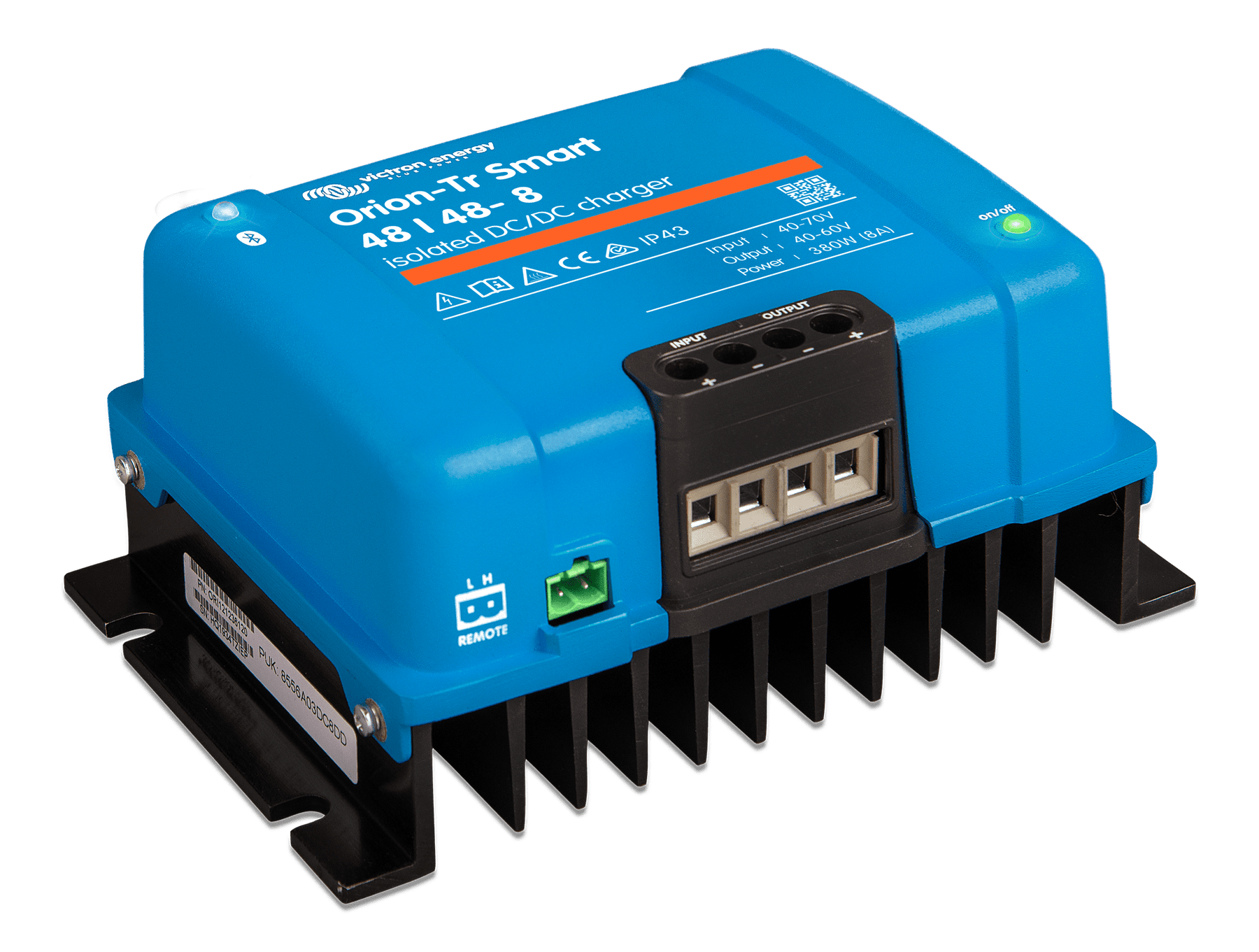

Orion-Tr Smart 48/48-8A (380W) Isolated DC-DC charger
Victron
Artikelnummer ORI484838120
Regular price3 790 kr
/
Tax included.
- In stock, ready to ship
- Backordered, shipping soon
The Orion-Tr Smart 48/48-8A (380W) is an advanced and isolated DC-DC charger from Victron Energy, developed to provide reliable and efficient charging in 48 V systems. It is specially designed for use in vehicles or boats with dual battery systems, where the service battery is charged from a starter battery and a (smart) generator. The charger functions as an adaptive 3-stage battery charger that automatically adjusts according to battery type and charging status, providing optimal battery care and long lifespan.
With built-in Bluetooth, it is easy to both monitor and configure the charger via the VictronConnect app on your mobile or tablet. You can see voltages, current, temperature, and history in real time as well as set charging parameters. For increased control, there is also the option to connect a remote on/off switch. Additionally, the unit can automatically detect if the engine is running thanks to a built-in detection mechanism.
The Orion-Tr Smart is compatible with both lead-acid and lithium batteries and can be used in 12 V, 24 V, and 48 V systems. For higher power needs, multiple units can be connected in parallel without any limitations. The model can operate in high temperatures, up to 55 °C, with full nominal power up to 40 °C, making it ideal even in demanding environments.
This is a robust and smart choice for those seeking a flexible, safe, and future-proof DC-DC charger with high performance and full control directly on the mobile device.
With built-in Bluetooth, it is easy to both monitor and configure the charger via the VictronConnect app on your mobile or tablet. You can see voltages, current, temperature, and history in real time as well as set charging parameters. For increased control, there is also the option to connect a remote on/off switch. Additionally, the unit can automatically detect if the engine is running thanks to a built-in detection mechanism.
The Orion-Tr Smart is compatible with both lead-acid and lithium batteries and can be used in 12 V, 24 V, and 48 V systems. For higher power needs, multiple units can be connected in parallel without any limitations. The model can operate in high temperatures, up to 55 °C, with full nominal power up to 40 °C, making it ideal even in demanding environments.
This is a robust and smart choice for those seeking a flexible, safe, and future-proof DC-DC charger with high performance and full control directly on the mobile device.
| Varumärke | Victron |
| Vikt (kg) | 1,6 |
| Bruttovikt (kg) | 1.92 |
| Utgångsström A | 8 |
| Ingångsspänning | 48 |
| Utgångsspänning V | 48 |
| Skyddsklass | IP43 |
| GTIN | 8719076065609 |
| Typ | Isolerad |
| Mått mm HxBxD | 130x186x70 |
