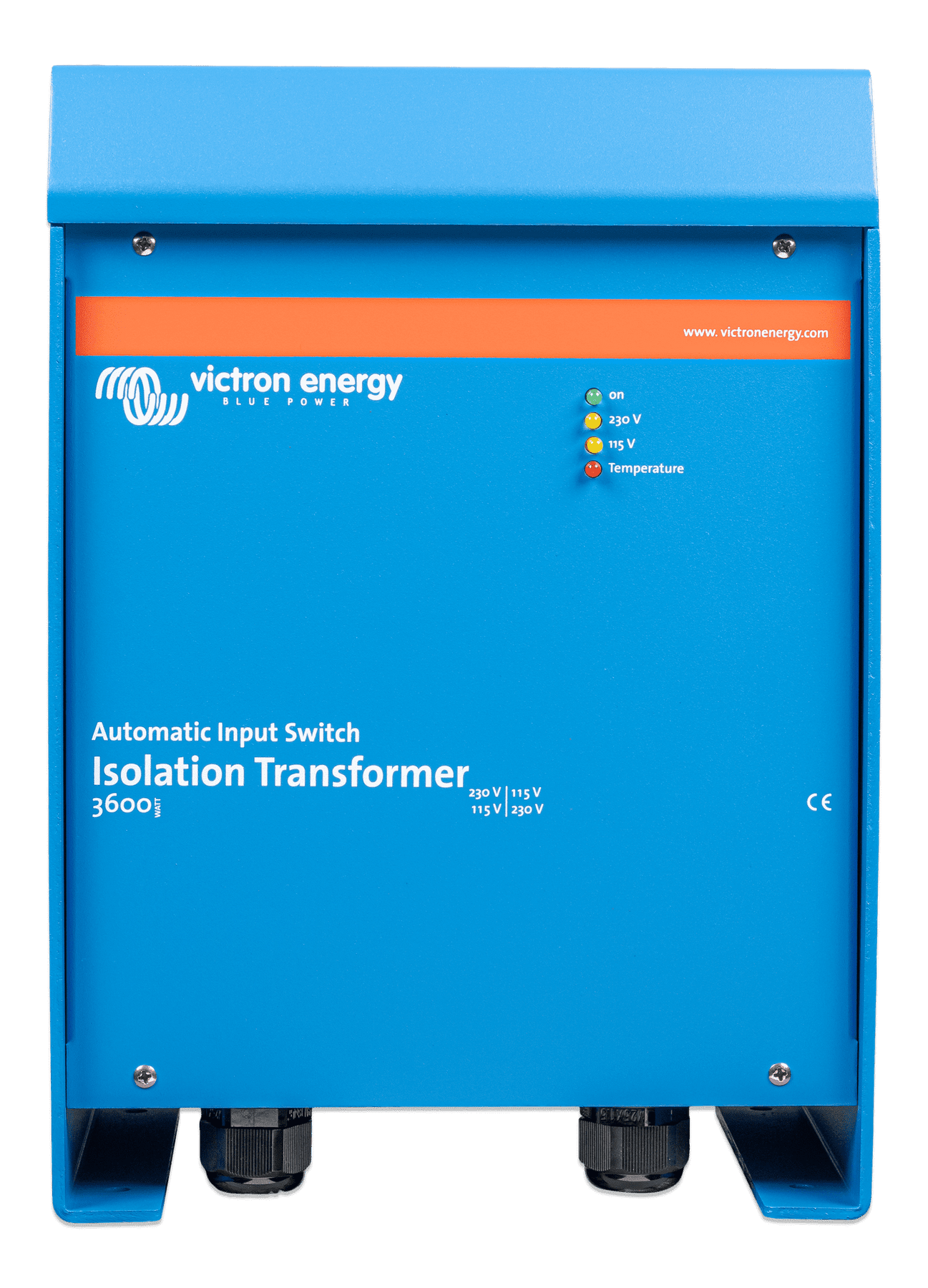

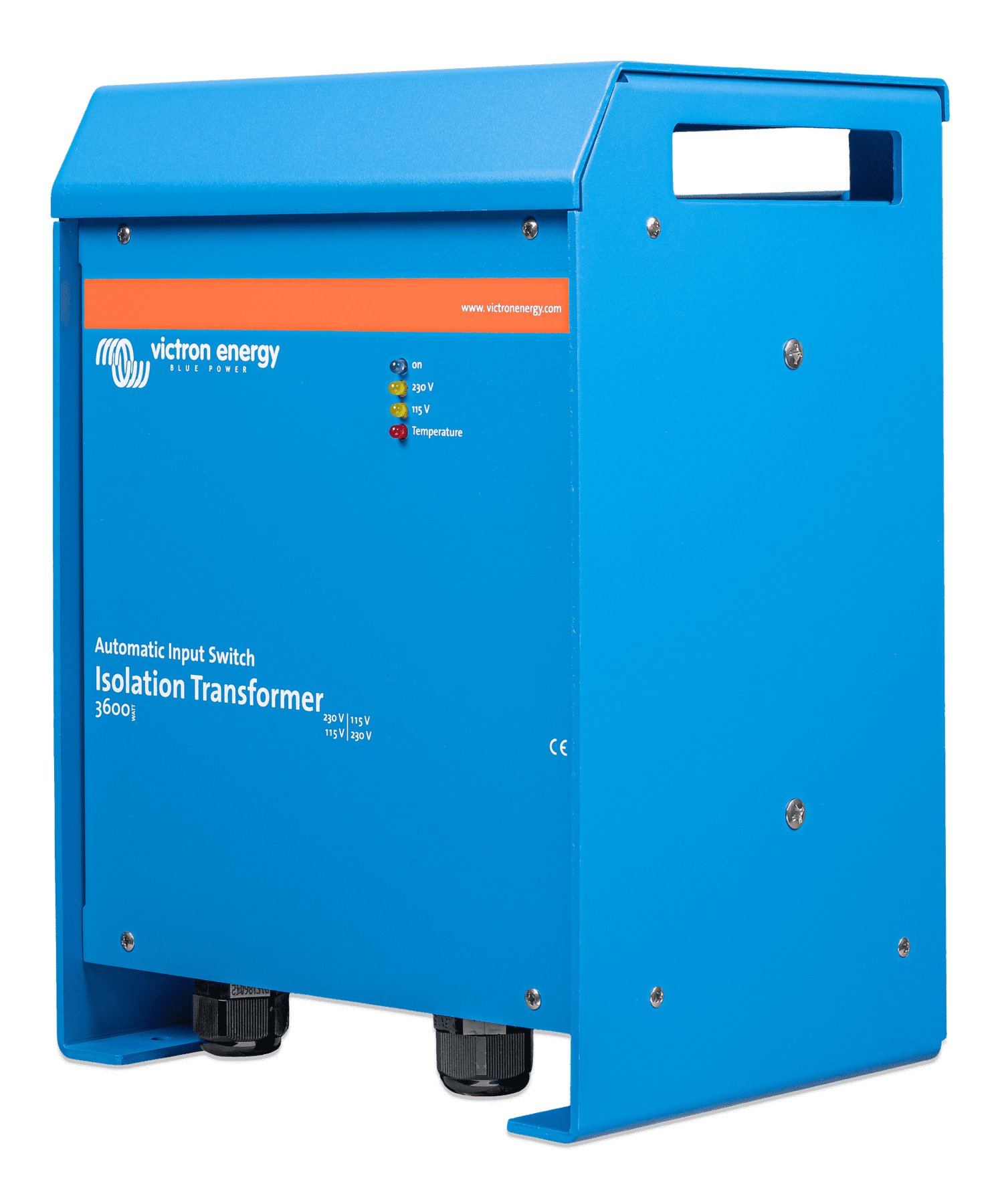

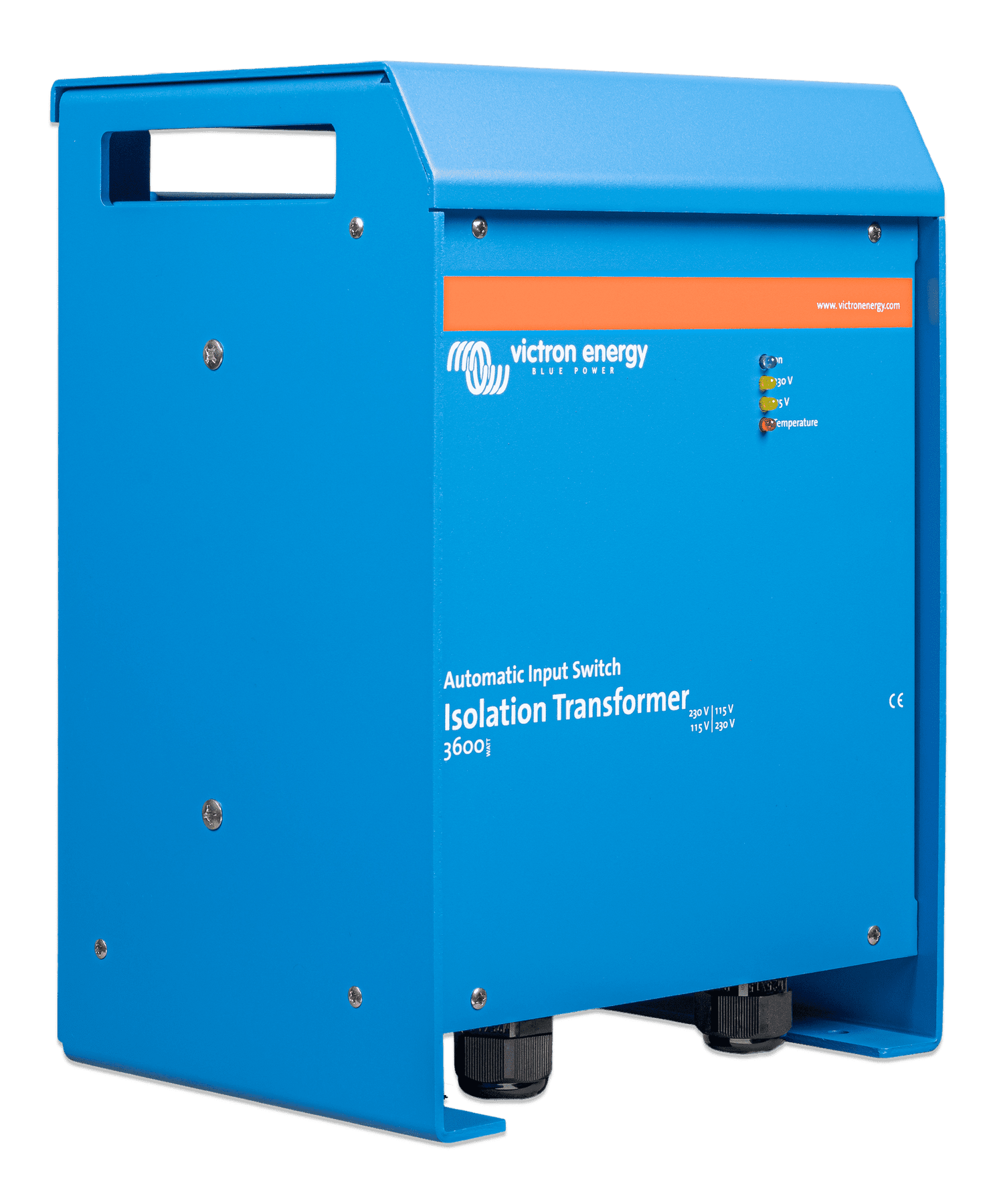

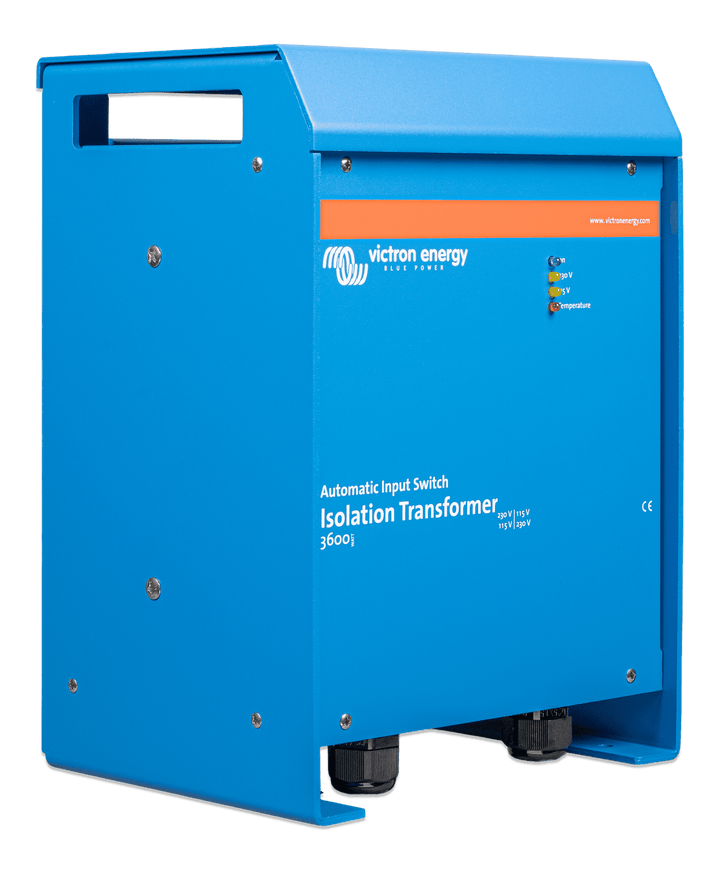

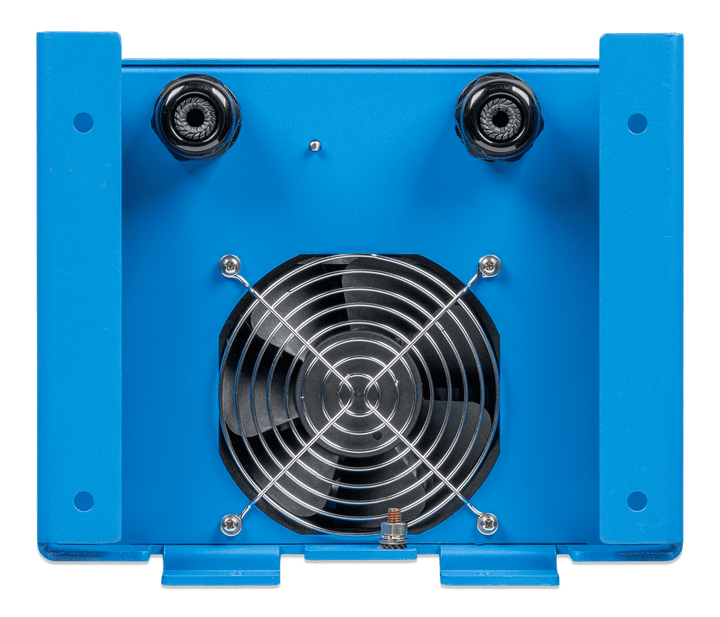

Isolation Transformer 3600W Auto 115/230V
Victron
Artikelnummer ITR050362042
OBS!
ersatts av
Isolation Transformer 3600W Auto 115/
.
Regular price8 890 kr
/
Tax included.
- Low stock - 1 item left
- Backordered, shipping soon
Isolation Transformer 3600W Auto 115/230V is a high-performance isolation transformer with automatic voltage switching, specially designed for marine installations where both 115V and 230V shore power may occur. The transformer provides full galvanic isolation between the shore power and the boat's electrical system, thereby eliminating unwanted electrical currents that can cause galvanic and electrolytic corrosion – a common problem in marine environments where multiple boats are connected to the same power system.
What distinguishes this model is its Auto function, which means that the transformer automatically detects and adapts to the incoming voltage (115V or 230V) and then connects the correct supply to the output. This means the user does not need to make any manual switching when the boat moves between different ports with different electrical standards – the system handles everything itself. This function is especially useful for boats traveling between countries with different mains voltages, for example between North America (115V) and Europe (230V).
With an output power of 3600W (3.6kW), it can supply larger electrical systems onboard and is well suited for both recreational boats and commercial vessels. It is based on toroidal winding technology that provides very quiet operation, low weight, and high efficiency. To prevent fuses from blowing at connection, it is equipped with a built-in soft start function that dampens the current peak when connecting to shore power.
The housing is robust and designed to withstand moisture, salt, and temperature differences, making it ideal for installation in marine environments. The transformer is also maintenance-free and ensures a stable and interference-free power supply without ground faults or voltage variations from shore affecting the onboard electrical system.
Unlike galvanic isolators, which only break unwanted currents in the ground conductor, this isolation transformer offers a complete electrical break between the shore network and the boat's electrical network. It protects both equipment and hull, while the automatic voltage adaptation makes usage both easier and safer, regardless of where in the world the boat is located.
What distinguishes this model is its Auto function, which means that the transformer automatically detects and adapts to the incoming voltage (115V or 230V) and then connects the correct supply to the output. This means the user does not need to make any manual switching when the boat moves between different ports with different electrical standards – the system handles everything itself. This function is especially useful for boats traveling between countries with different mains voltages, for example between North America (115V) and Europe (230V).
With an output power of 3600W (3.6kW), it can supply larger electrical systems onboard and is well suited for both recreational boats and commercial vessels. It is based on toroidal winding technology that provides very quiet operation, low weight, and high efficiency. To prevent fuses from blowing at connection, it is equipped with a built-in soft start function that dampens the current peak when connecting to shore power.
The housing is robust and designed to withstand moisture, salt, and temperature differences, making it ideal for installation in marine environments. The transformer is also maintenance-free and ensures a stable and interference-free power supply without ground faults or voltage variations from shore affecting the onboard electrical system.
Unlike galvanic isolators, which only break unwanted currents in the ground conductor, this isolation transformer offers a complete electrical break between the shore network and the boat's electrical network. It protects both equipment and hull, while the automatic voltage adaptation makes usage both easier and safer, regardless of where in the world the boat is located.
| Varumärke | Victron |
| Vikt (kg) | 23 |
| Bruttovikt (kg) | 23.8 |
| Skyddsklass | IP21 |
| GTIN | 8719076066125 |
| Mått mm HxBxD | 362x258x218 |
