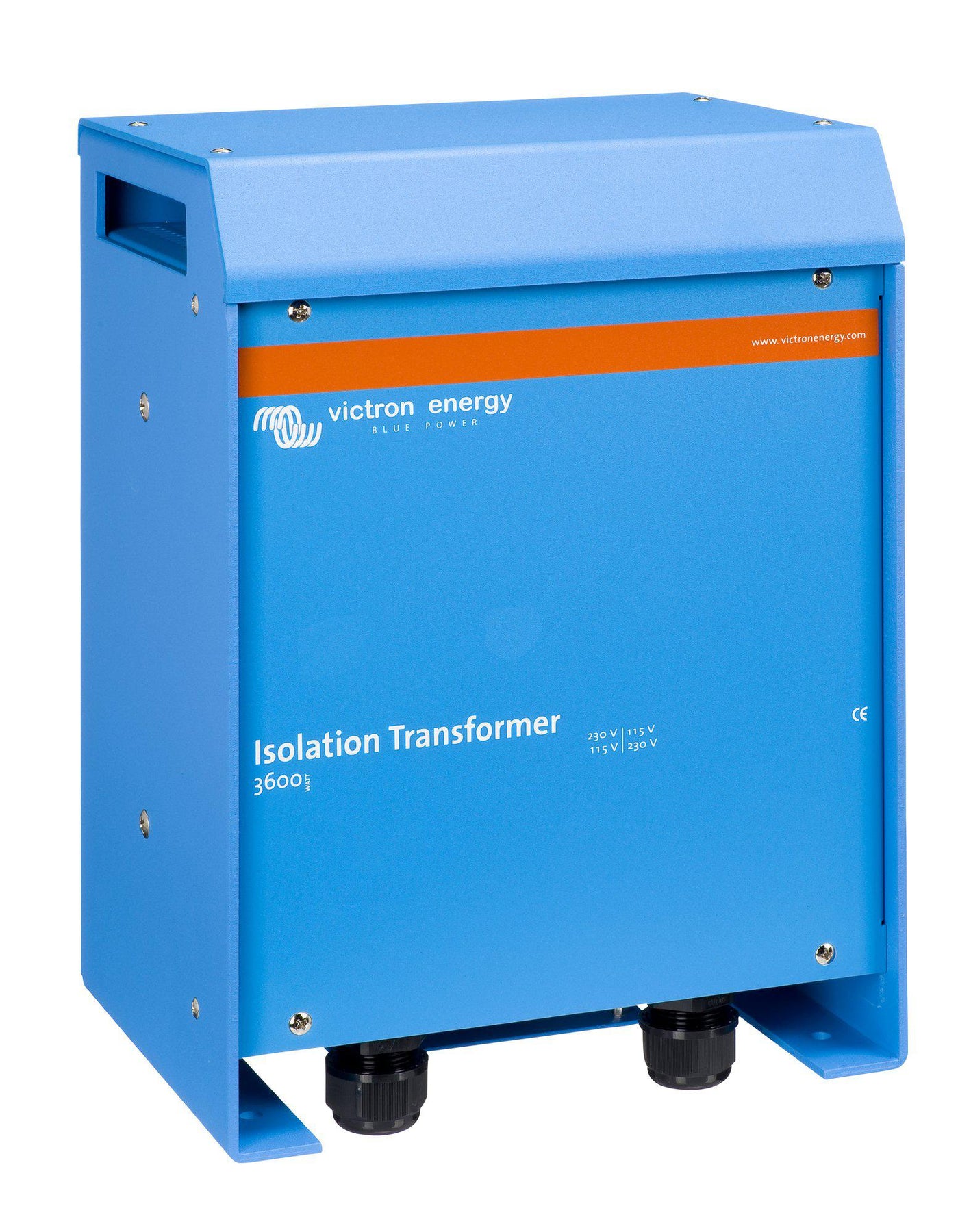

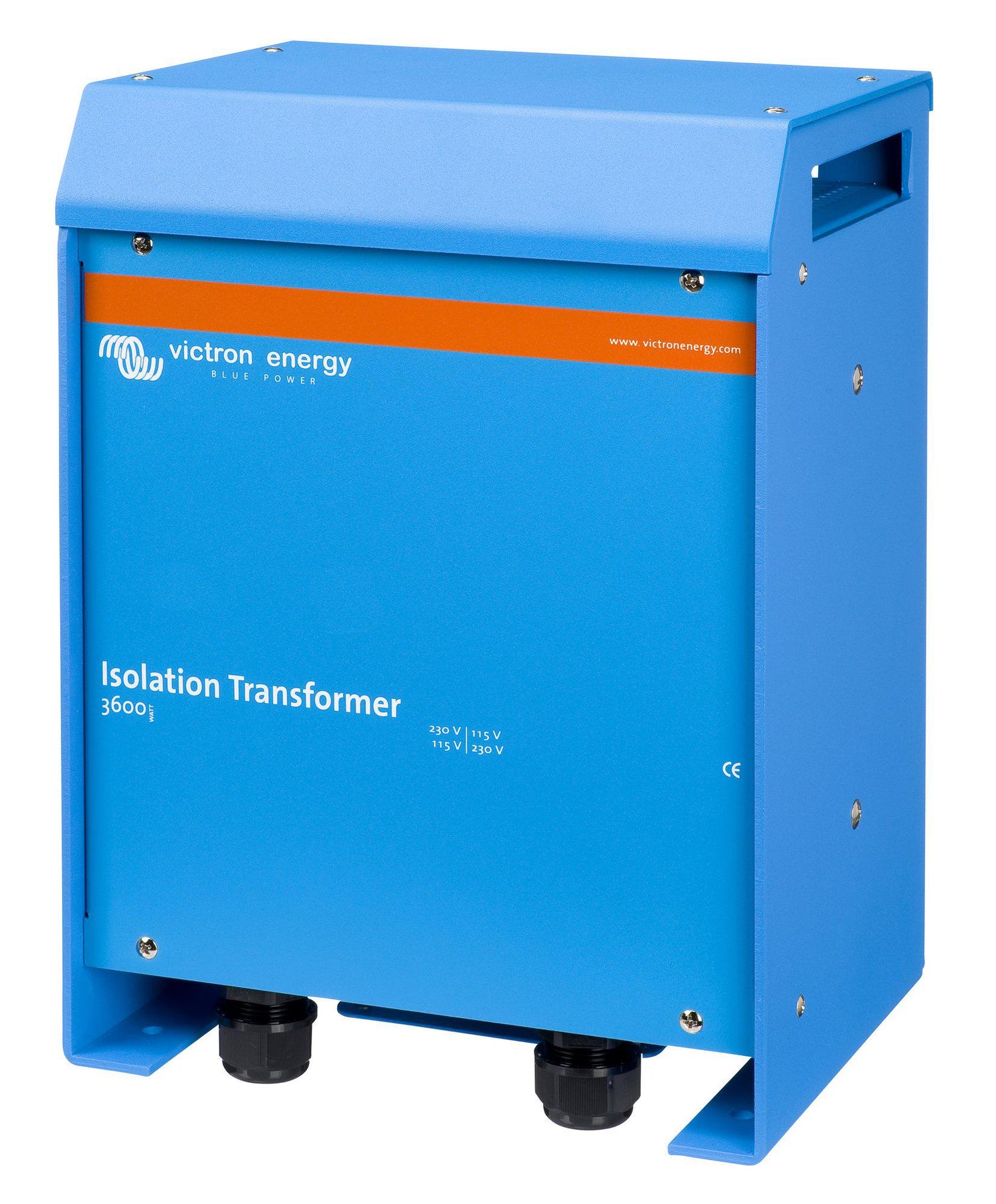

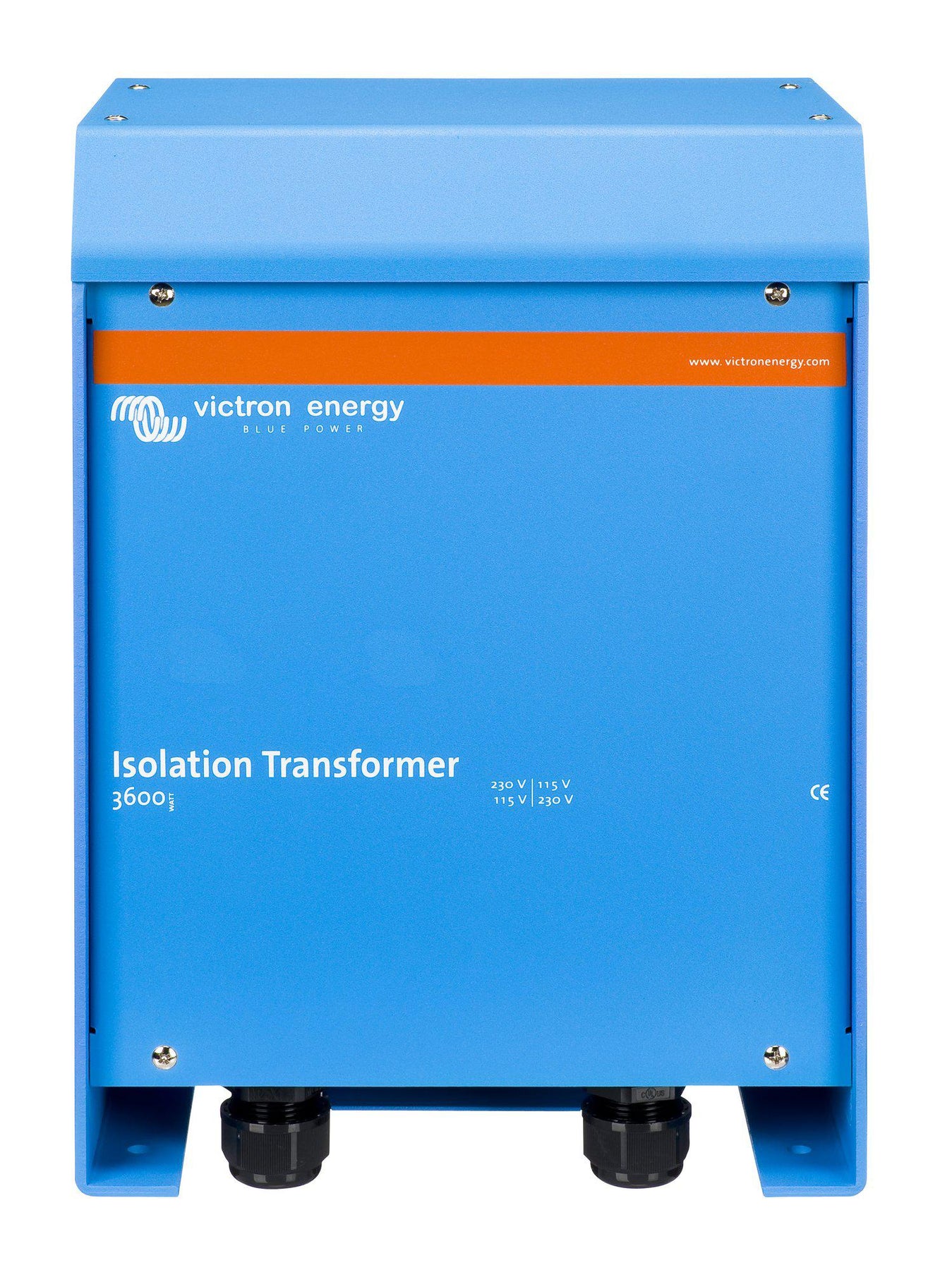

Isolation Transformer 3600W 115/230V
Victron
Artikelnummer ITR040362042
Regular price8 390 kr
/
Tax included.
- In stock, ready to ship
- Backordered, shipping soon
Isolation Transformer 3600W 115/230V is a high-performance isolation transformer. The transformer is specially designed to provide full galvanic isolation between shore power and the boat's electrical system, eliminating unwanted electrical currents that can otherwise lead to galvanic and electrolytic corrosion.
With an output power of 3600W (3.6kW) and support for both 115V and 230V AC, it is well suited for larger onboard electrical systems where higher power demands occur. It is based on advanced toroidal winding technology that not only provides low weight and compact design but also extremely quiet operation and high efficiency. The transformer emits minimal heat and has very low loss, which is especially valuable in technical spaces with limited ventilation.
A built-in soft start circuit ensures that the transformer connects smoothly to the grid, preventing fuses from blowing due to the initial current surge. This provides a smooth and reliable startup every time the boat is connected to shore power. The transformer is fully enclosed in a protective housing and designed to withstand marine conditions with moisture, salt, and temperature differences.
Unlike galvanic isolators, which only block voltage differences in the ground conductor, this isolation transformer offers a complete electrical break between the grid and the boat. This not only provides effective protection against corrosion but also a secure barrier against any interference, voltage faults, or ground faults that may exist in the shore installation. It is compatible with both fixed and automatic shore power connections and provides robust, professional protection in all types of marine electrical systems.
With an output power of 3600W (3.6kW) and support for both 115V and 230V AC, it is well suited for larger onboard electrical systems where higher power demands occur. It is based on advanced toroidal winding technology that not only provides low weight and compact design but also extremely quiet operation and high efficiency. The transformer emits minimal heat and has very low loss, which is especially valuable in technical spaces with limited ventilation.
A built-in soft start circuit ensures that the transformer connects smoothly to the grid, preventing fuses from blowing due to the initial current surge. This provides a smooth and reliable startup every time the boat is connected to shore power. The transformer is fully enclosed in a protective housing and designed to withstand marine conditions with moisture, salt, and temperature differences.
Unlike galvanic isolators, which only block voltage differences in the ground conductor, this isolation transformer offers a complete electrical break between the grid and the boat. This not only provides effective protection against corrosion but also a secure barrier against any interference, voltage faults, or ground faults that may exist in the shore installation. It is compatible with both fixed and automatic shore power connections and provides robust, professional protection in all types of marine electrical systems.
| Varumärke | Victron |
| Bruttovikt (kg) | 23.8 |
| GTIN | 8719076066118 |
