BSS Switch Battery m-Series Dual Circuit
Blue Sea Systems
Artikelnummer 6010-BSS
Regular price911 kr
/
Tax included.
- In stock, ready to ship
- Backordered, shipping soon

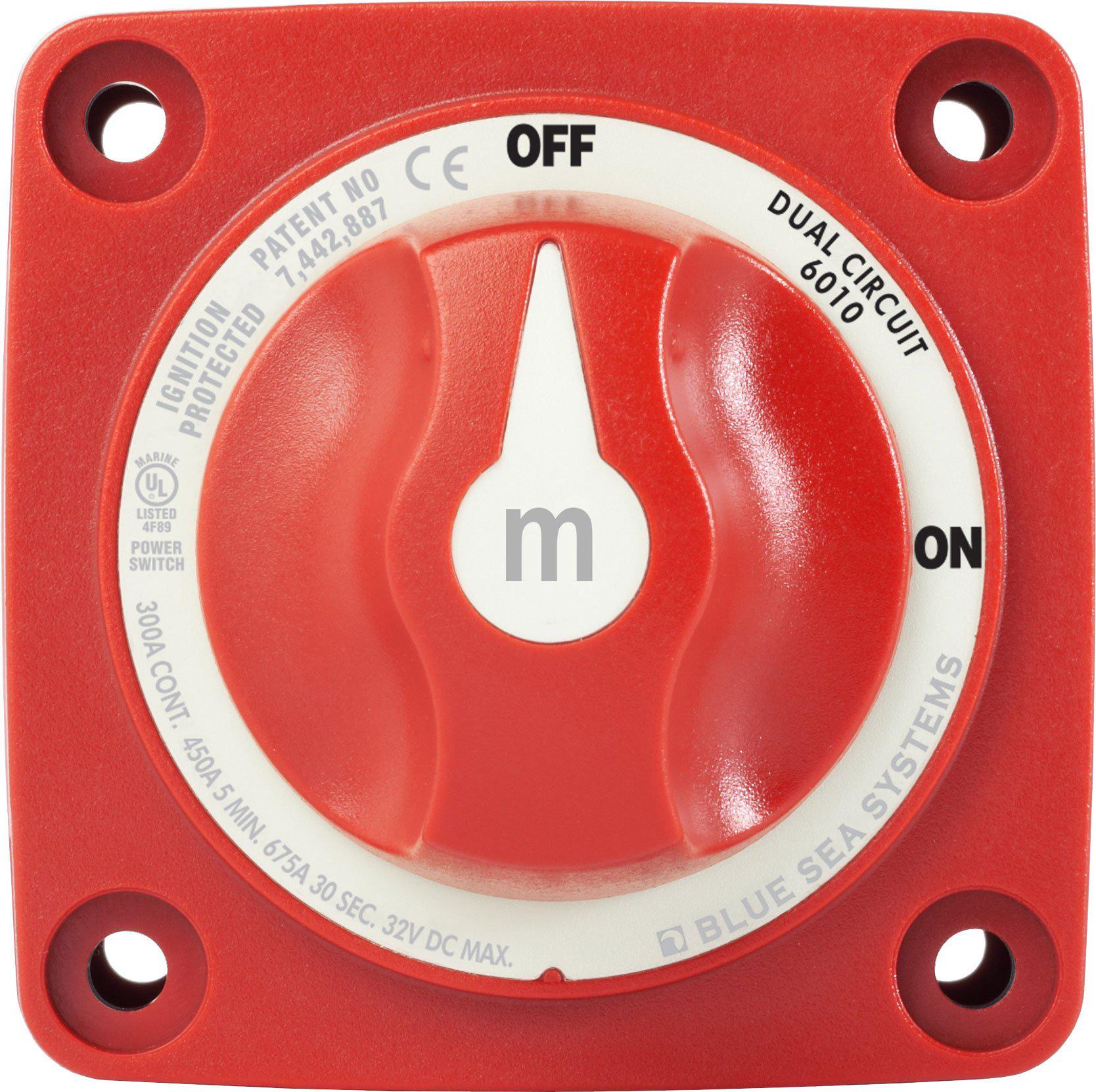

The m-Series Mini Dual Circuit Battery Switch is a compact and powerful switch that simultaneously controls two separate battery banks, making it perfect for boats, vehicles, and industrial systems where safe and efficient power management is crucial.

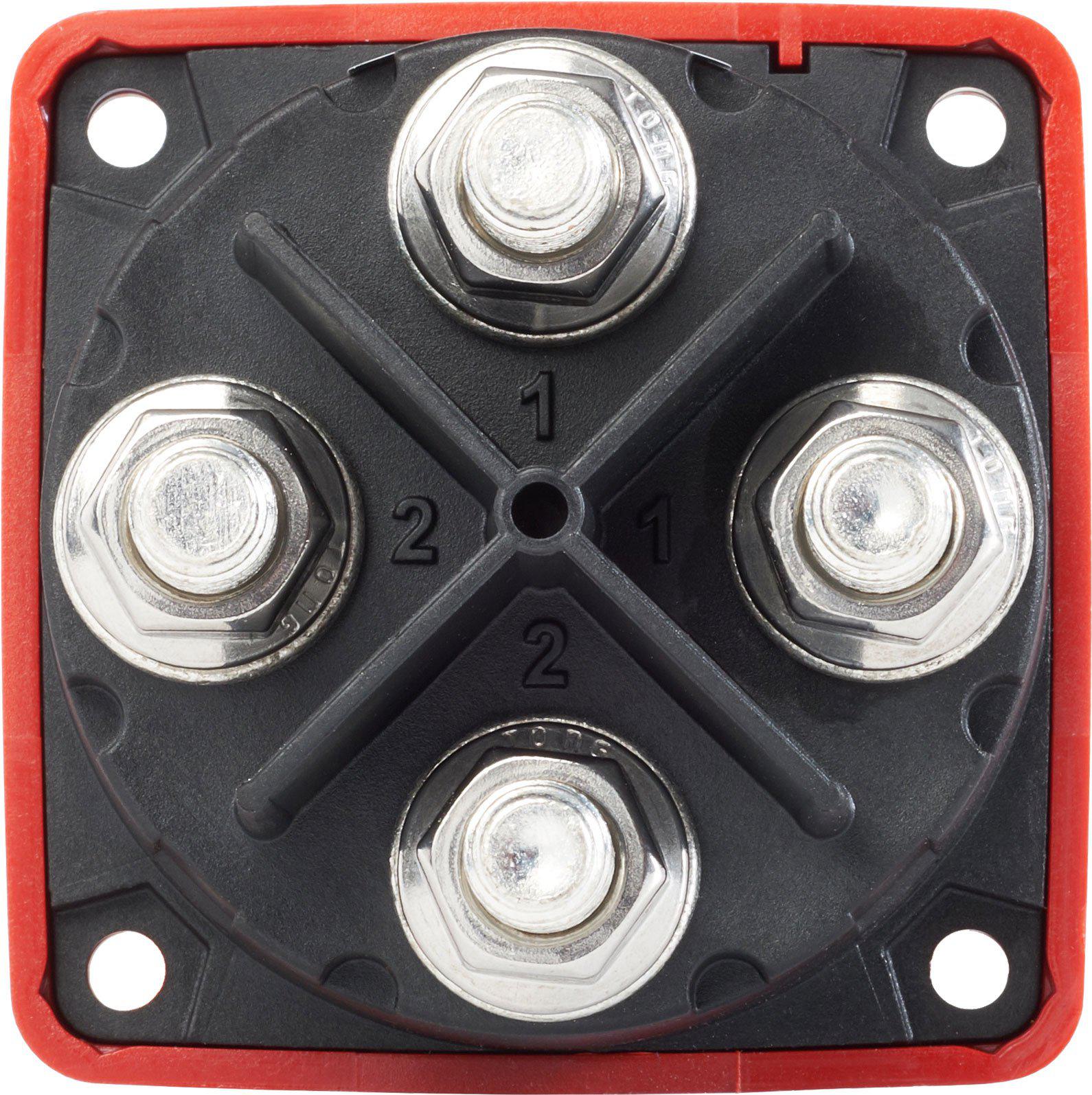

The switch has two positions (ON-OFF) and allows simultaneous shutdown or activation of two battery circuits without combining them. It handles 300A continuous current, 450A intermittent (5 min), and a starting current of 675A per circuit, making it ideal for powerful electrical systems and engine starts. Tin-plated copper studs provide high conductivity and corrosion protection, ensuring long service life even in demanding environments.

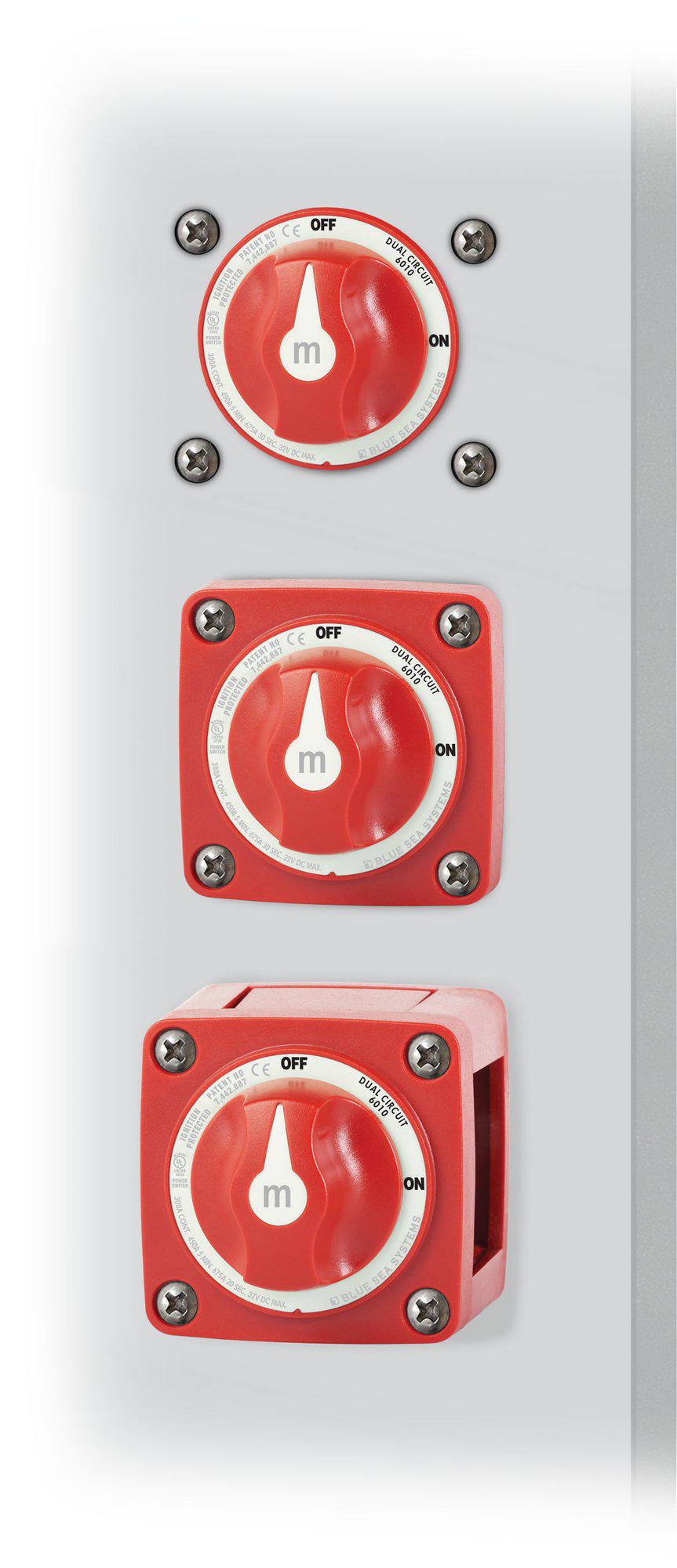

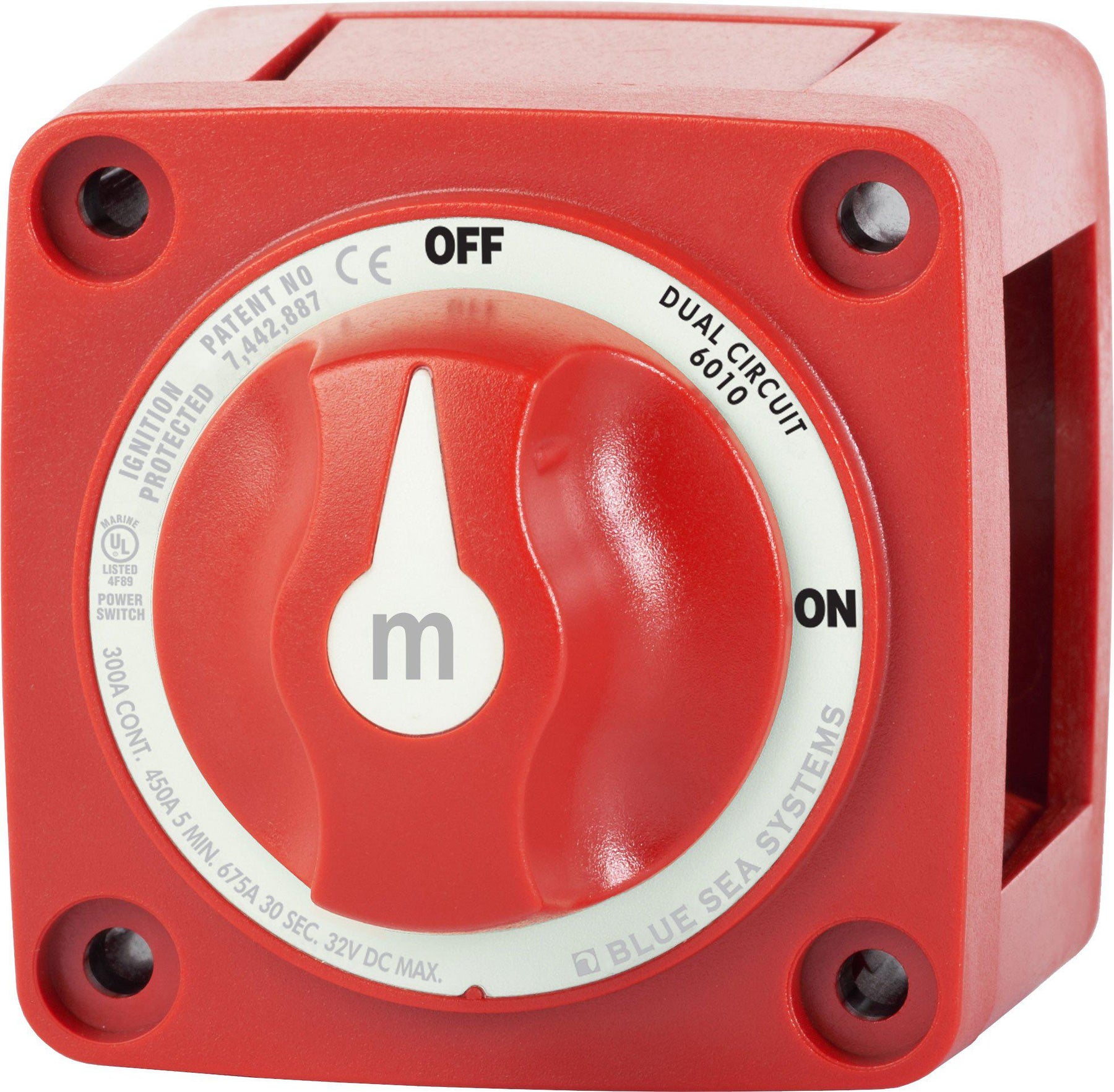

It is ignition protected, making it safe to use in gasoline-powered boats and other sensitive environments. An insulating protective cover guards against short circuits, and breakable cable entries provide flexible installation. The switch can be surface or back panel mounted and fits cables up to 4/0 AWG (120 mm²).
With a maximum voltage of 32V DC and 3/8" (M10) studs, this switch is a reliable and safe choice for managing dual battery banks.
The switch has two positions (ON-OFF) and allows simultaneous shutdown or activation of two battery circuits without combining them. It handles 300A continuous current, 450A intermittent (5 min), and a starting current of 675A per circuit, making it ideal for powerful electrical systems and engine starts. Tin-plated copper studs provide high conductivity and corrosion protection, ensuring long service life even in demanding environments.
It is ignition protected, making it safe to use in gasoline-powered boats and other sensitive environments. An insulating protective cover guards against short circuits, and breakable cable entries provide flexible installation. The switch can be surface or back panel mounted and fits cables up to 4/0 AWG (120 mm²).
With a maximum voltage of 32V DC and 3/8" (M10) studs, this switch is a reliable and safe choice for managing dual battery banks.
| Varumärke | Blue Sea Systems |
| Bruttovikt (kg) | 0 |
| Typ i Pim | Manuell brytare |
| GTIN | 632085060107 |
| Typ | Manuell brytare |
